Provides the low level communication between the robots microcontroller and the laptop. More...

#include <interfaceAvr.h>

Collaboration diagram for InterfaceAvr:

Signals
void	message (QString text, bool CR=true, bool sayIt=false, bool addTimestamp=true)
void	robotState (bool state)
void	tooMuchErrors ()

Public Member Functions
void	closeComPort ()
bool	convertStringToInt (QString string, int &value)
	InterfaceAvr ()
bool	openComPort (QString comPort)
bool	receiveChar (unsigned char *character, QString callingClassName="none")
bool	receiveInt (int *value, QString callingClassName="none")
bool	receiveString (QString &string, QString callingClassName="none")
bool	sendChar (unsigned char character, QString callingClassName="none")
bool	sendString (QString string, QString callingClassName="none")
	~InterfaceAvr ()

Private Attributes
QString	className
DirecsSerial *	serialPort
	this will contain the name of this class at runtime for debug messages

Static Private Attributes
static const int	BAUDRATE = 38400
	For robot is "OFF".
static const bool	OFF = false
	For robot is "ON".
static const bool	ON = true
static const char	starter = 42
	This is the baudrate with which the serial port will be opened. The other (not parameterized) settings are "8N1".
static const char	terminator = 35
	This starts the serial string for the Atmel controller. 42 = *.

Detailed Description

Provides the low level communication between the robots microcontroller and the laptop.

Author:: Markus Knapp This class is used for the low level communication between the robots microcontroller and the laptop via a serial port, e.g. COM1 or /dev/ttyUSB0.

Definition at line 39 of file interfaceAvr.h.

Constructor & Destructor Documentation

InterfaceAvr::InterfaceAvr ( )

Definition at line 23 of file interfaceAvr.cpp.

Here is the call graph for this function:

InterfaceAvr::~InterfaceAvr ( )

Definition at line 37 of file interfaceAvr.cpp.

Member Function Documentation

void InterfaceAvr::closeComPort ( )

Closes the serial port

Definition at line 72 of file interfaceAvr.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

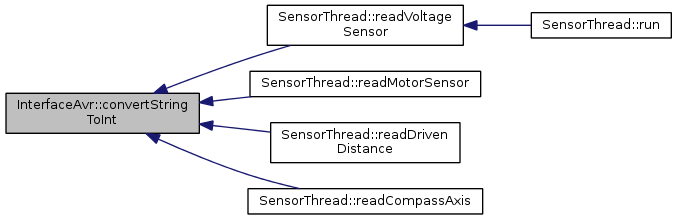

bool InterfaceAvr::convertStringToInt	(	QString	string,
		int &	value
	)

Returns an integer value which comes from a former recevied string. Example: With *42# the 42 is the 'string' here.

Parameters:

string
&value	is the int value when the conversion was successfull.

Returns:: true on access or false if an error occured.

Definition at line 259 of file interfaceAvr.cpp.

Here is the caller graph for this function:

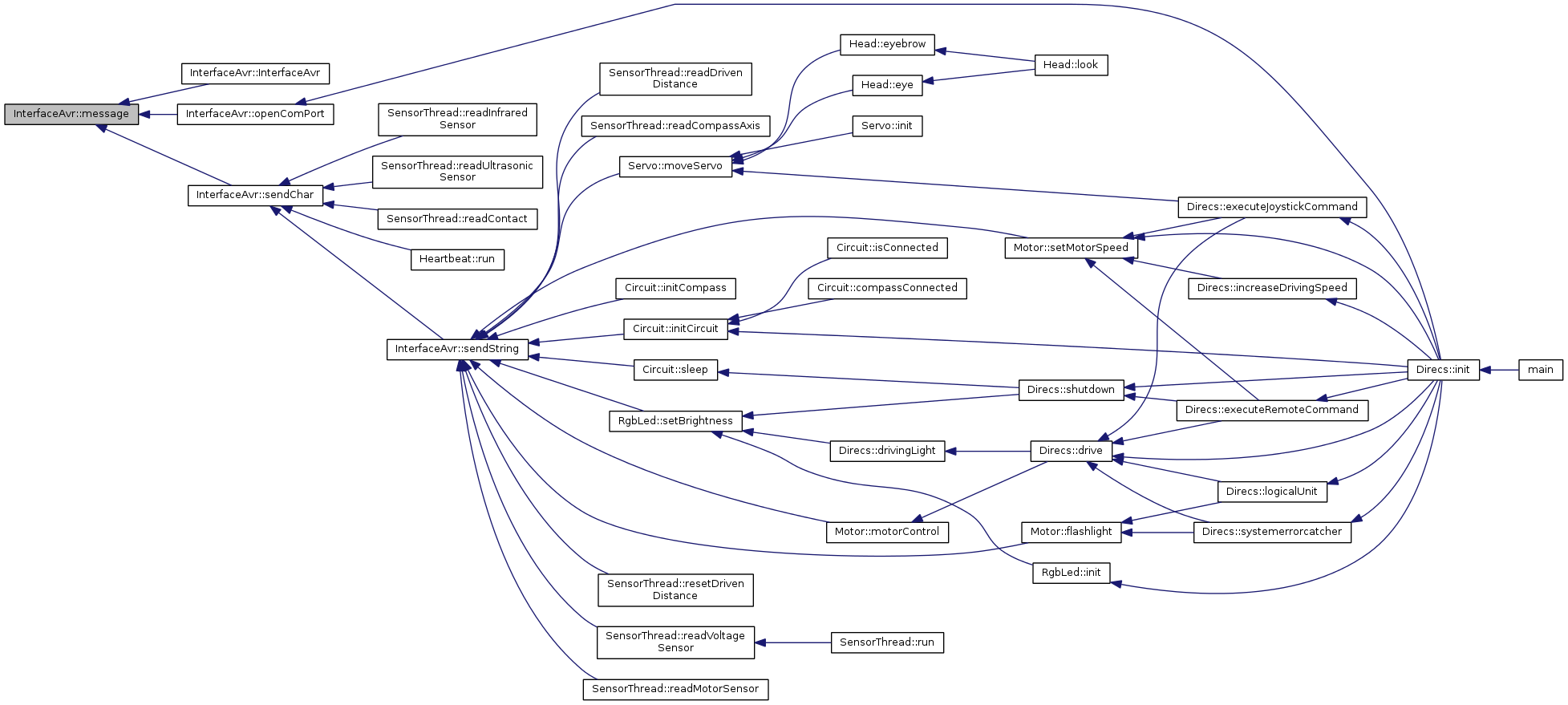

void InterfaceAvr::message	(	QString	text,
		bool	CR = `true`,
		bool	sayIt = `false`,
		bool	addTimestamp = `true`
	)

signal

Emits a info or error message to a slot. This slot can be used to display a text on a splash screen, log file, to print it to a console...

Parameters:

text	is the message to be emitted

Here is the caller graph for this function:

bool InterfaceAvr::openComPort ( QString comPort )

Opens a serial port/device. On POSIX systems this looks like "/dev/tty4" oder "/dev/ttyUSB0". On Windows systems it's like "COM1".

Parameters:

comPort is the serial port

Returns:: true on access or false if an error occured, while opening the device.

Definition at line 43 of file interfaceAvr.cpp.

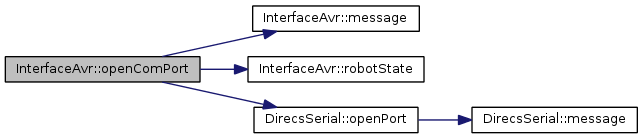

Here is the call graph for this function:

Here is the caller graph for this function:

bool InterfaceAvr::receiveChar	(	unsigned char *	character,
		QString	callingClassName = `"none"`
	)

Receives a character from the serial port/device.

Parameters:

character
callingClassName	may contain the name of the calling class. This is for debug messages only.

Returns:: true on access or false if an error occured.

Definition at line 107 of file interfaceAvr.cpp.

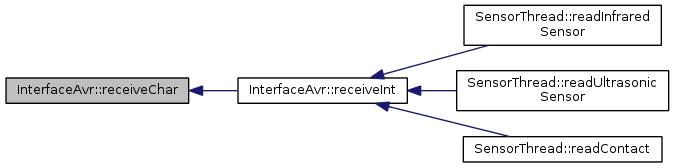

Here is the call graph for this function:

Here is the caller graph for this function:

bool InterfaceAvr::receiveInt	(	int *	value,
		QString	callingClassName = `"none"`
	)

Receives an integer value from the serial port/device (consisting of two char values, which are receivced one after another and combined to an int back).

Parameters:

*value
callingClassName	may contain the name of the calling class. This is for debug messages only.

Returns:: true on access or false if an error occured.

Definition at line 203 of file interfaceAvr.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

bool InterfaceAvr::receiveString	(	QString &	string,
		QString	callingClassName = `"none"`
	)

Receives a string from the serial port/device. It expects a starter at the beginning and a termintator at the end of the string which is currently defined as a const. Example: With *42# the 42 is the 'string' here.

Parameters:

&string	is the complete result - including the starter and the terminator!
callingClassName	may contain the name of the calling class. This is for debug messages only.

Returns:: true on access or false if an error occured.

Definition at line 162 of file interfaceAvr.cpp.

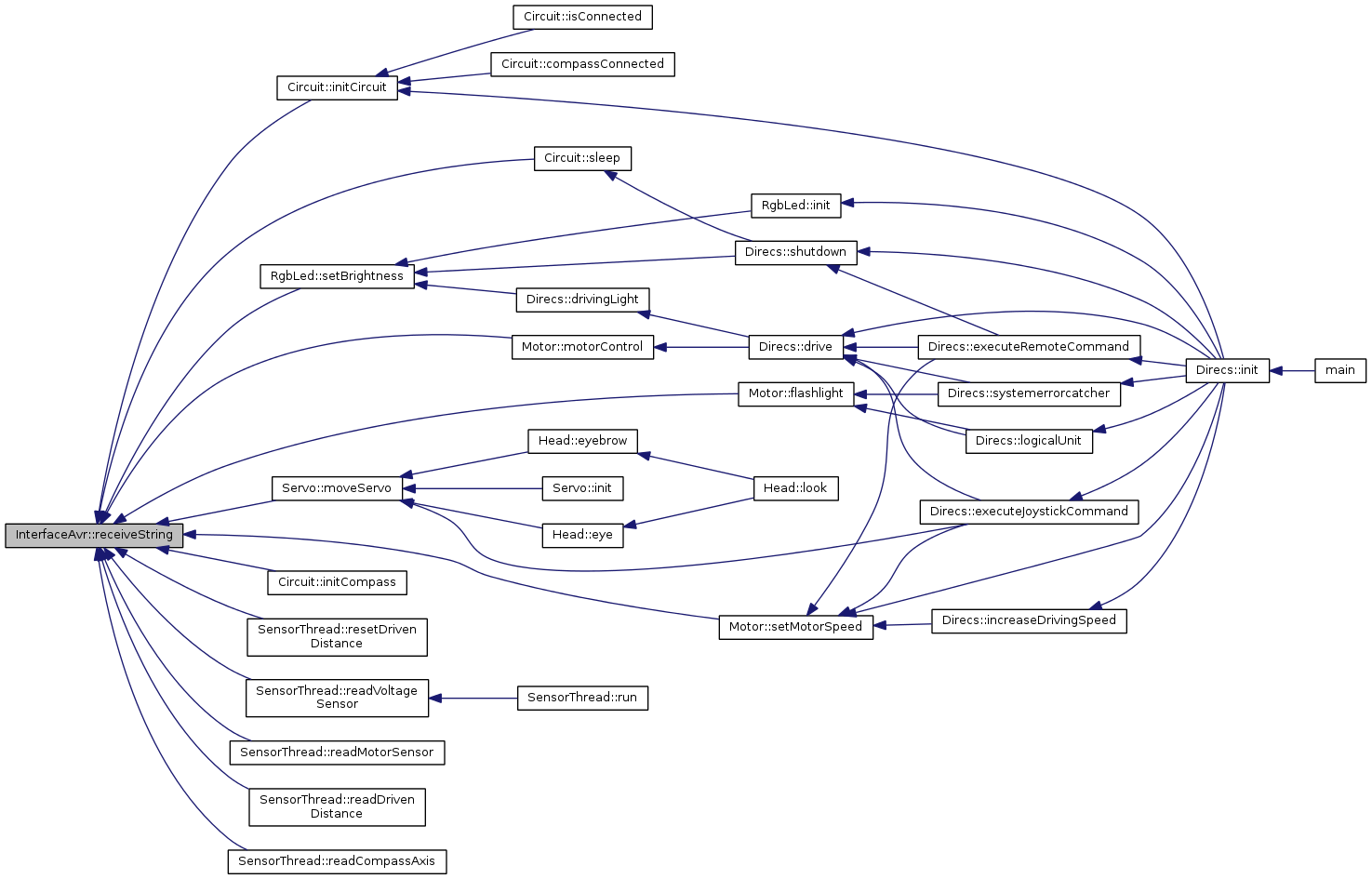

Here is the call graph for this function:

Here is the caller graph for this function:

void InterfaceAvr::robotState ( bool state )

signal

This signal emits the robots state to all connected slots, to tell them if the robot is ON or OFF This signal is emitted, when the openComPort() method fails!

Parameters:

state can be ON or OFF

Here is the caller graph for this function:

bool InterfaceAvr::sendChar	(	unsigned char	character,
		QString	callingClassName = `"none"`
	)

Sends a character to the serial port/device.

Parameters:

character
callingClassName	may contain the name of the calling class. This is for debug messages only.

Returns:: true on access or false if an error occured.

Definition at line 79 of file interfaceAvr.cpp.

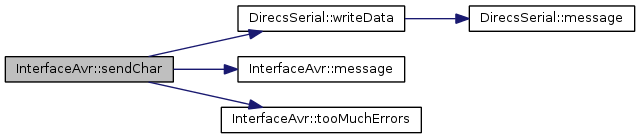

Here is the call graph for this function:

Here is the caller graph for this function:

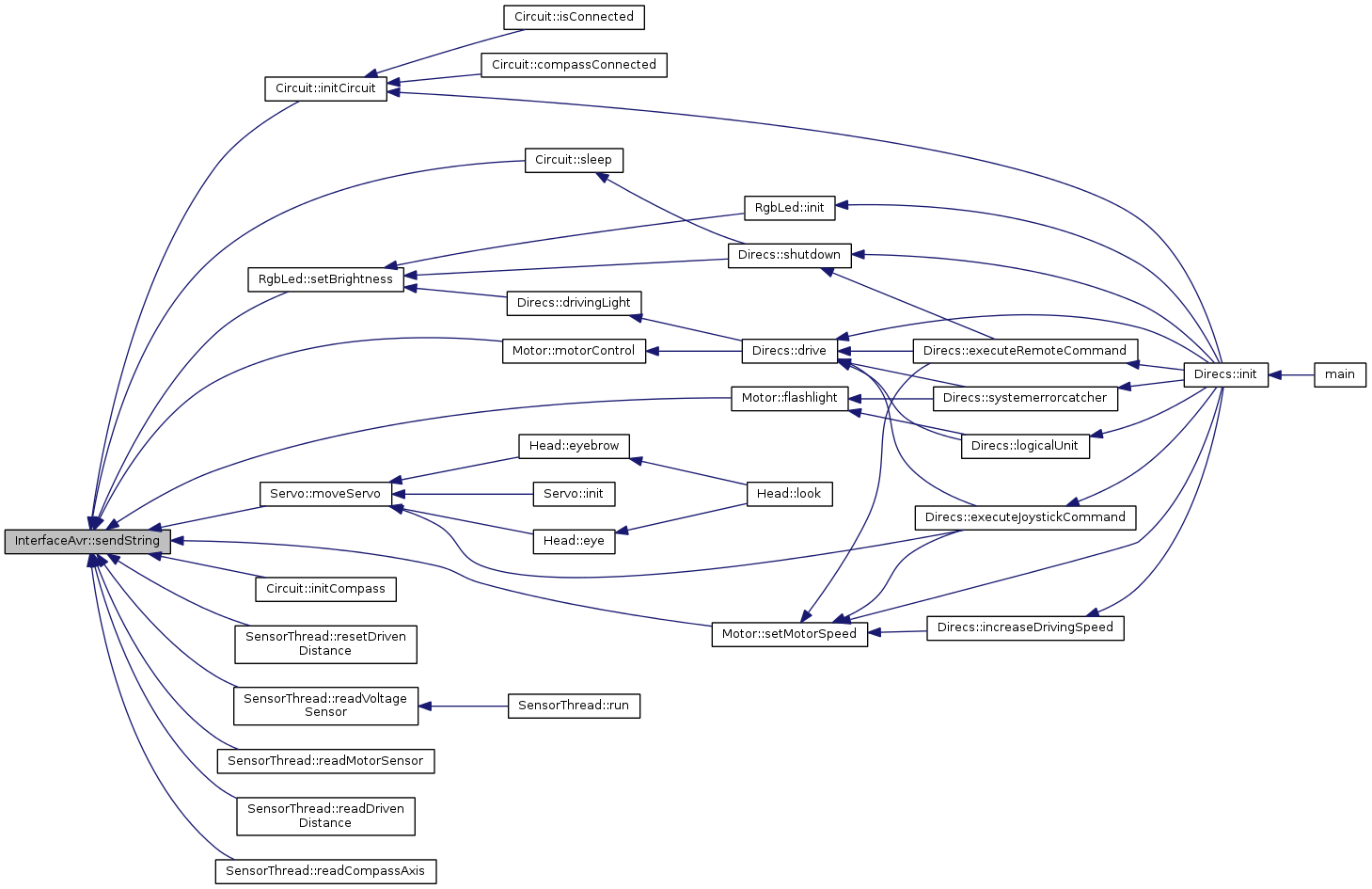

bool InterfaceAvr::sendString	(	QString	string,
		QString	callingClassName = `"none"`
	)

Sends a string to the serial port/device. When sending it prepends a start char and appends a terminator char wich the corresponting receiving Atmel expects. Example: *s8# sends the command 's8' to the receiver.

Parameters:

string	is the information to send - without starter and terminator!
callingClassName	may contain the name of the calling class. This is for debug messages only.

Returns:: true on access or false if an error occured.

Definition at line 128 of file interfaceAvr.cpp.

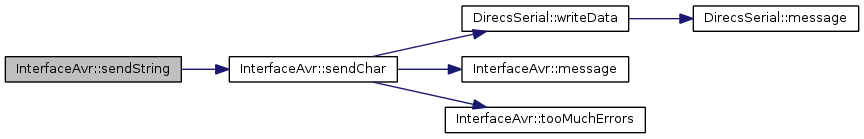

Here is the call graph for this function:

Here is the caller graph for this function:

void InterfaceAvr::tooMuchErrors ( )

signal

This signal is emmited, when too much errors occur while receiving or sending to the serial port.

See also:: Direcs::showExitDialog()

Here is the caller graph for this function:

Member Data Documentation

const int InterfaceAvr::BAUDRATE = 38400

staticprivate

For robot is "OFF".

Definition at line 140 of file interfaceAvr.h.

QString InterfaceAvr::className

private

Definition at line 134 of file interfaceAvr.h.

const bool InterfaceAvr::OFF = false

staticprivate

For robot is "ON".

Definition at line 138 of file interfaceAvr.h.

const bool InterfaceAvr::ON = true

staticprivate

Definition at line 137 of file interfaceAvr.h.

DirecsSerial* InterfaceAvr::serialPort

private

this will contain the name of this class at runtime for debug messages

Definition at line 135 of file interfaceAvr.h.

const char InterfaceAvr::starter = 42

staticprivate

This is the baudrate with which the serial port will be opened. The other (not parameterized) settings are "8N1".

Definition at line 142 of file interfaceAvr.h.

const char InterfaceAvr::terminator = 35

staticprivate

This starts the serial string for the Atmel controller. 42 = *.

Definition at line 143 of file interfaceAvr.h.
